Ambassador (Emissary-ingress)

OpsVerse's telemetry agents are pre-configured to collect telemetry from Ambassador components. This document provides info about configuring your Amabassador installation to emit metrics, logs and traces.
Additionally, The official emissary site offers a general overview.
Metrics
Include the following annotations in your ambassador Pod. If you are making use of the official Ambassador helm chart, you can achieve this by setting the following in the vaules.yaml file:
YAML
podAnnotations:
  prometheus.io/scrape: 'true'
  prometheus.io/port: '8877'
podAnnotations:
  prometheus.io/scrape: 'true'
  prometheus.io/port: '8877'
﻿
Logs
The recommended format for logging is json. Logging related customizations can be set using the following configurations.
YAML
apiVersion: getambassador.io/v3alpha1
kind: Module
metadata:
  name: ambassador
spec:
  config:
    envoy_log_type: json
    envoy_log_format:
      {
      "upstream_service_time": "%RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)%",
      "method": "%REQ(:METHOD)%",
      "request_id": "%REQ(X-REQUEST-ID)%",
      "downstream_local_address": "%DOWNSTREAM_LOCAL_ADDRESS%",
      "x_forwarded_for": "%REQ(X-FORWARDED-FOR)%",
      "path": "%REQ(X-ENVOY-ORIGINAL-PATH?:PATH)%",
      "downstream_remote_address": "%DOWNSTREAM_REMOTE_ADDRESS%",
      "upstream_cluster": "%UPSTREAM_CLUSTER%",
      "authority": "%REQ(:AUTHORITY)%",
      "start_time": "%START_TIME%",
      "bytes_received": "%BYTES_RECEIVED%",
      "response_flags": "%RESPONSE_FLAGS%",
      "requested_server_name": "%REQUESTED_SERVER_NAME%",
      "response_code": "%RESPONSE_CODE%",
      "upstream_host": "%UPSTREAM_HOST%",
      "protocol": "%PROTOCOL%",
      "bytes_sent": "%BYTES_SENT%",
      "upstream_transport_failure_reason": "%UPSTREAM_TRANSPORT_FAILURE_REASON%",
      "upstream_local_address": "%UPSTREAM_LOCAL_ADDRESS%",
      "user_agent": "%REQ(USER-AGENT)%",
      "duration": "%DURATION%",
      "x_b3_traceid": "%REQ(X-B3-TRACEID)%",
      "trace_id": "%REQ(X-B3-TRACEID)%",
      "x_b3_parentspanid": "%REQ(X-B3-PARENTSPANID)%",
      "x_b3_spanid": "%REQ(X-B3-SPANID)%",
      "x_b3_sampled": "%REQ(X-B3-SAMPLED)%"
    }
apiVersion: getambassador.io/v3alpha1
kind: Module
metadata:
  name: ambassador
spec:
  config:
    envoy_log_type: json
    envoy_log_format:
      {
      "upstream_service_time": "%RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)%",
      "method": "%REQ(:METHOD)%",
      "request_id": "%REQ(X-REQUEST-ID)%",
      "downstream_local_address": "%DOWNSTREAM_LOCAL_ADDRESS%",
      "x_forwarded_for": "%REQ(X-FORWARDED-FOR)%",
      "path": "%REQ(X-ENVOY-ORIGINAL-PATH?:PATH)%",
      "downstream_remote_address": "%DOWNSTREAM_REMOTE_ADDRESS%",
      "upstream_cluster": "%UPSTREAM_CLUSTER%",
      "authority": "%REQ(:AUTHORITY)%",
      "start_time": "%START_TIME%",
      "bytes_received": "%BYTES_RECEIVED%",
      "response_flags": "%RESPONSE_FLAGS%",
      "requested_server_name": "%REQUESTED_SERVER_NAME%",
      "response_code": "%RESPONSE_CODE%",
      "upstream_host": "%UPSTREAM_HOST%",
      "protocol": "%PROTOCOL%",
      "bytes_sent": "%BYTES_SENT%",
      "upstream_transport_failure_reason": "%UPSTREAM_TRANSPORT_FAILURE_REASON%",
      "upstream_local_address": "%UPSTREAM_LOCAL_ADDRESS%",
      "user_agent": "%REQ(USER-AGENT)%",
      "duration": "%DURATION%",
      "x_b3_traceid": "%REQ(X-B3-TRACEID)%",
      "trace_id": "%REQ(X-B3-TRACEID)%",
      "x_b3_parentspanid": "%REQ(X-B3-PARENTSPANID)%",
      "x_b3_spanid": "%REQ(X-B3-SPANID)%",
      "x_b3_sampled": "%REQ(X-B3-SAMPLED)%"
    }
﻿
Tracing
Ambassador components can be configured to emit APM traces with the following configuration:
YAML
apiVersion: getambassador.io/v3alpha1
kind:  TracingService
metadata:
  name:  tracing
spec:
  service: "http://otel-collector.devopsnow.svc.cluster.local:9411"
  driver: zipkin
  config: {}
#  tag_headers:
#  - ":authority"
#  - ":path"
#  sampling:
#    overall: 100
apiVersion: getambassador.io/v3alpha1
kind:  TracingService
metadata:
  name:  tracing
spec:
  service: "http://otel-collector.devopsnow.svc.cluster.local:9411"
  driver: zipkin
  config: {}
#  tag_headers:
#  - ":authority"
#  - ":path"
#  sampling:
#    overall: 100
﻿
Note that the OpsVerse Otel collector is available in your K8s cluster at http://otel-collector.devopsnow.svc.cluster.local:9411.
Visualization

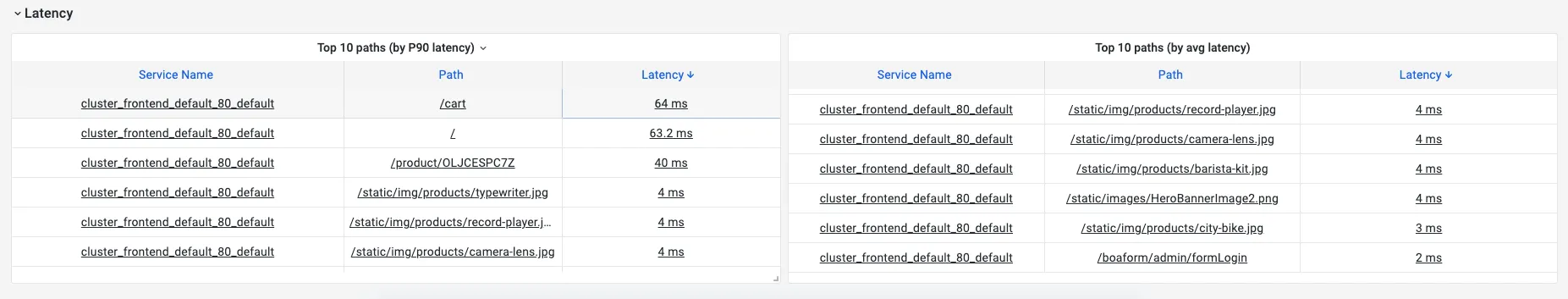

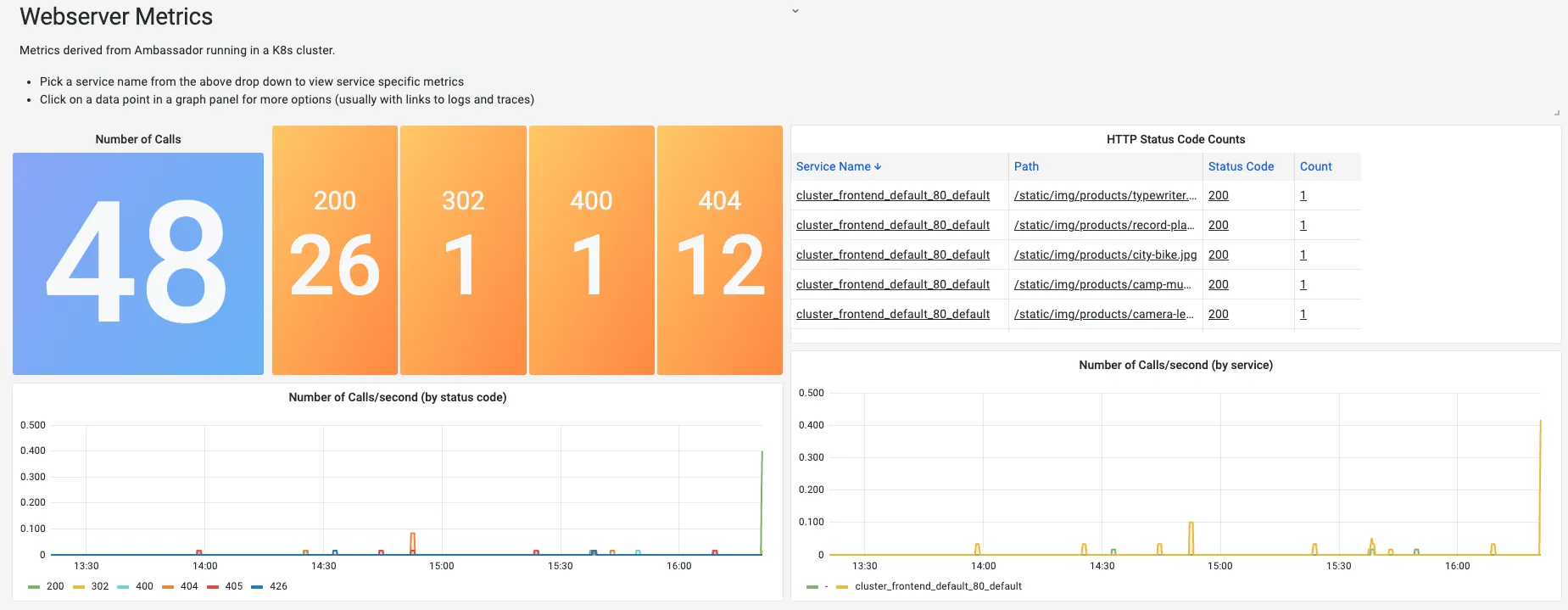

Once the required telemetry is enabled, the Ambassador dashboard that is pre-packaged with your ObserveNow stack can be used to visualize incoming traffic.
﻿
﻿
﻿
