AWS Lambda Functions

Overview
This document outlines the process of automatically instrumenting AWS Lambda functions using OpenTelemetry (OTel) layers. It details the necessary steps for adding Lambda layers, configuring environment variables, and integrating the OpenTelemetry Collector for effective observability.
This integration works for Metrics and Traces. Since OpenTelemetry Logs support is unstable for most languages, we recommend using the Cloudwatch exporter for bringing AWS Lambda logs into ObserveNow
Supported Languages
OpenTelemetry provides auto-instrumentation support for the following AWS Lambda runtimes: Java, JavaScript, Python, Ruby
Steps for Instrumentation
Step 1: Add the OTel Collector Lambda Layer
Before instrumenting your application, you must add the OpenTelemetry Collector Lambda layer. Follow these steps:
Open the AWS Management Console﻿
Navigate to the Lambda function you intend to instrument
In the Layers section of the Designer, click Add a layer
Under Specify an ARN, enter the ARN for the OTel Collector Lambda layer, ensuring to replace <region> with the appropriate AWS region for your Lambda function.Find the most recent Collector layer release here
 Make sure to use the layer in the same region as your Lambda functions. The community publishes layers in all available regions. Example: arn:aws:lambda:<region>:184161586896:layer:opentelemetry-collector-amd64-0_11_0:1
Note: Ensure that the layers are deployed in the same AWS region as your Lambda function, as Lambda layers are region-specific resources.
Step 2:Add the Instrumentation Lambda Layer
Add the instrumentation layer corresponding to your selected programming language by following the same steps as above:
For Python example: arn:aws:lambda::184161586896:layer:opentelemetry-python-0_10_0:1
Find the most recent instrumentation layer release for your language and use it’s ARN after changing the <region> tag to the region your Lambda
Note: Ensure that the layers are deployed in the same AWS region as your Lambda function, as Lambda layers are region-specific resources.
Step 3: Configure Environment Variables
Adjust the entry point of your application by configuring the AWS_LAMBDA_EXEC_WRAPPER environment variable according to your programming language.
For Node.js, Java, or Ruby: AWS_LAMBDA_EXEC_WRAPPER=/opt/otel-handler
For Python: AWS_LAMBDA_EXEC_WRAPPER=/opt/otel-instrument
Create an environment variable to specify the configuration file for the OpenTelemetry Collector: OPENTELEMETRY_COLLECTOR_CONFIG_FILE=/var/task/collector.yaml
Step 4: Configure the OpenTelemetry Collector
The configuration of the OTel Collector Lambda layer follows the OpenTelemetry standard.
By default, the OTel Collector Lambda layer uses the config.yaml. Since we want to use a customization, create a collector.yaml file in the root directory
YAML
receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint: 0.0.0.0:4318

exporters:
  otlphttp:
    endpoint: "https://<opsverse-otel-endpoint>/"
    headers:
      Authorization: "Basic Base64{<username>:<password>}"
    retry_on_failure:
      max_elapsed_time: 600s

  prometheusremotewrite:
    endpoint: "https://<opsverse-metrics-endpoint>/api/v1/write"
    headers:
      Authorization: "Basic Base64{<username>:<password>}"
    resource_to_telemetry_conversion:
      enabled: true
    retry_on_failure:
      max_elapsed_time: 600s

service:
  pipelines:
    traces:
      receivers: [otlp]
      exporters: [otlphttp]
    metrics:
      receivers: [otlp]
      exporters: [prometheusremotewrite]

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint: 0.0.0.0:4318

exporters:
  otlphttp:
    endpoint: "https://<opsverse-otel-endpoint>/"
    headers:
      Authorization: "Basic Base64{<username>:<password>}"
    retry_on_failure:
      max_elapsed_time: 600s

  prometheusremotewrite:
    endpoint: "https://<opsverse-metrics-endpoint>/api/v1/write"
    headers:
      Authorization: "Basic Base64{<username>:<password>}"
    resource_to_telemetry_conversion:
      enabled: true
    retry_on_failure:
      max_elapsed_time: 600s

service:
  pipelines:
    traces:
      receivers: [otlp]
      exporters: [otlphttp]
    metrics:
      receivers: [otlp]
      exporters: [prometheusremotewrite]

﻿

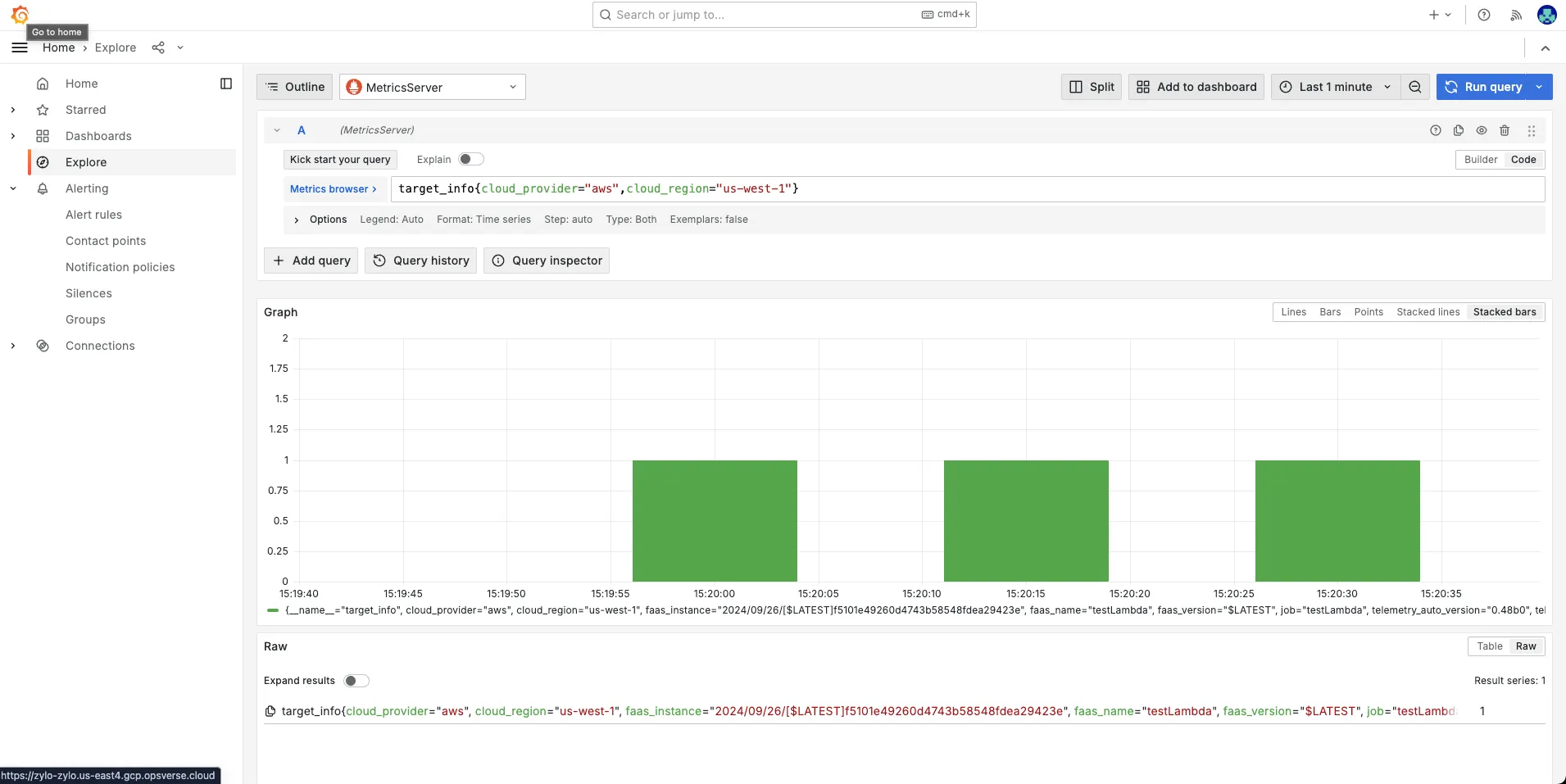

Step 5: View the metrics in ObserveNow
Metrics collected from Lamda function can be viewed under the Explore section of ObserveNow Grafana
﻿

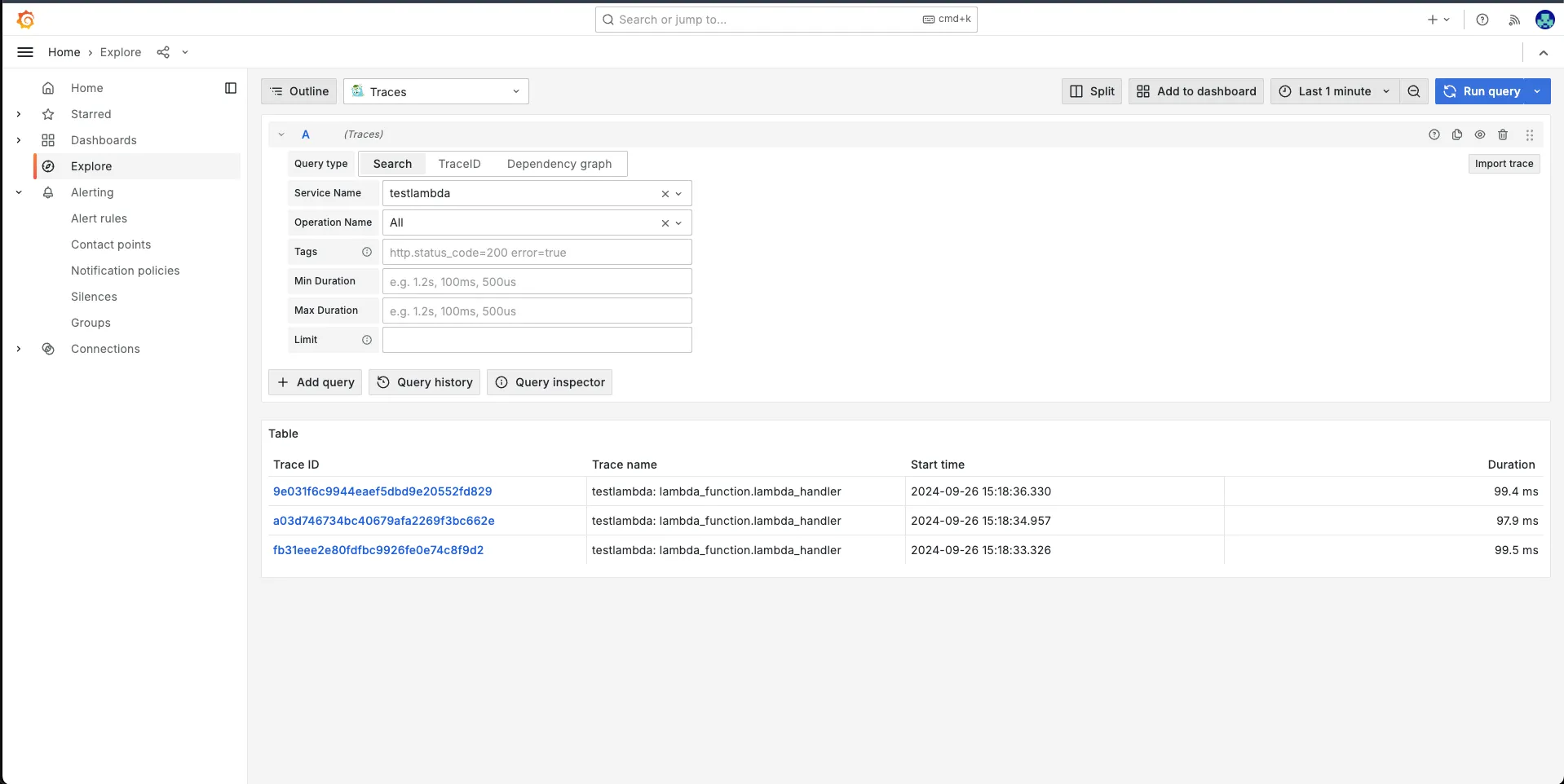

Step 6: View the traces in ObserveNow
Traces collected from Lamda function can be viewed under the Explore section of ObserveNowGrafana
﻿
﻿
